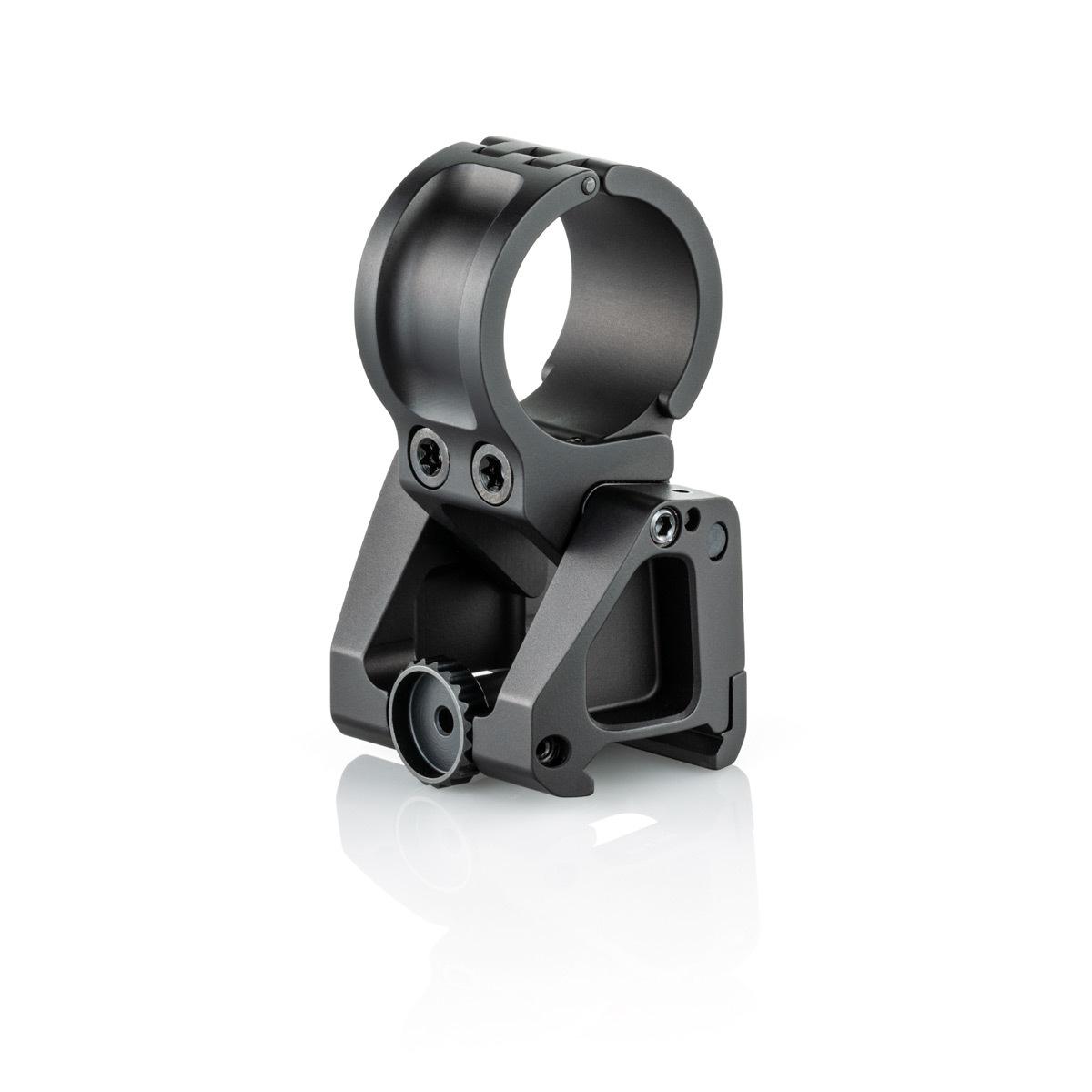

LEAP/Mag
State of the art Flip-to-Side Magnifier mount.
Designed for shooters who want the lightest, strongest, and most compact quick-detach magnifier mount possible.

SHORT THROW
Superior weapon balance.
Faster magnifier engagement.

LIGHT MADE RIGHT
Engineered to be the lightest Magnifier QD mount, without compromising an ounce of strength.

FLIPPIN' AWESOME
Opposing 4mm ball detents acting against Black Nitrided Chromoly steel plates provide ultra positive locking for thousands of cycles.

THE ONE RING
The Scalarworks® Ring was designed from the ground up to be stiffer, lighter, and easier to use than split rings.

A high-strength, precision fitted hinge ensures even pressure around your optic, without requiring the tedious and imprecise setup that split rings do.

Twin oversize CNC machined shoulder screws provide even tension and act as structural elements, making the entire ring assembly phenomenally rigid.

Each side of the Scalarworks® Ring is carefully lightened with a curvature continuous scallop that produces a very high strength-to-weight ratio.

The Scalarworks® Ring is wider than competing designs, providing more surface area to safely and securely hold your optic.

ClickDrive™
Our patented ClickDrive™ quick-detach mechanism is intuitive, self adjusting, and completely recoil proof. By decoupling clamping force from vibration resistance, ClickDrive™ doesn't need massive amounts of imprecise torque, and is not dependent on unreliable friction. A low profile recessed thumbwheel deflects external impacts, while letting you take the mount off in under 3 seconds, with or without gloves.

SMOOTH IS FAST
The Leap has no protruding levers, bolts, or knobs to rap your knuckles, or get caught on clothing, gear, and surroundings.

Specifications

MATERIALS: 7075-T6 Al + 4140H Steel
FINISHES: Type III Hard Anodizing + Black Nitride + Flash Nitride
RING DIAMETER: 30mm
MADE IN USA: Limited Lifetime Warranty

Standalone Mount (SW0600)
CENTER HEIGHT OVER RAIL 36mm (1.42")
WEIGHT: 81.5g (2.87oz)

Standalone Mount (SW0610)
CENTER HEIGHT OVER RAIL 40mm (1.57")
WEIGHT: 84.1g (2.97oz)

Standalone Mount (SW0620)
CENTER HEIGHT OVER RAIL 49mm (1.93")
WEIGHT: 91.8g (3.24oz)

Compatibility
OPTICS: Aimpoint 3X-C, Aimpoint 3XMag, Aimpoint 3XMag-1, Aimpoint 6XMag-1, Most other 30mm tube Magnifiers.

Standalone Mounts Package Included
• Scalarworks LEAP/Mag mount
• Nylok® treated sight screws
• T25 Torx driver bit
• User manual

Optics is NOT included in this product
