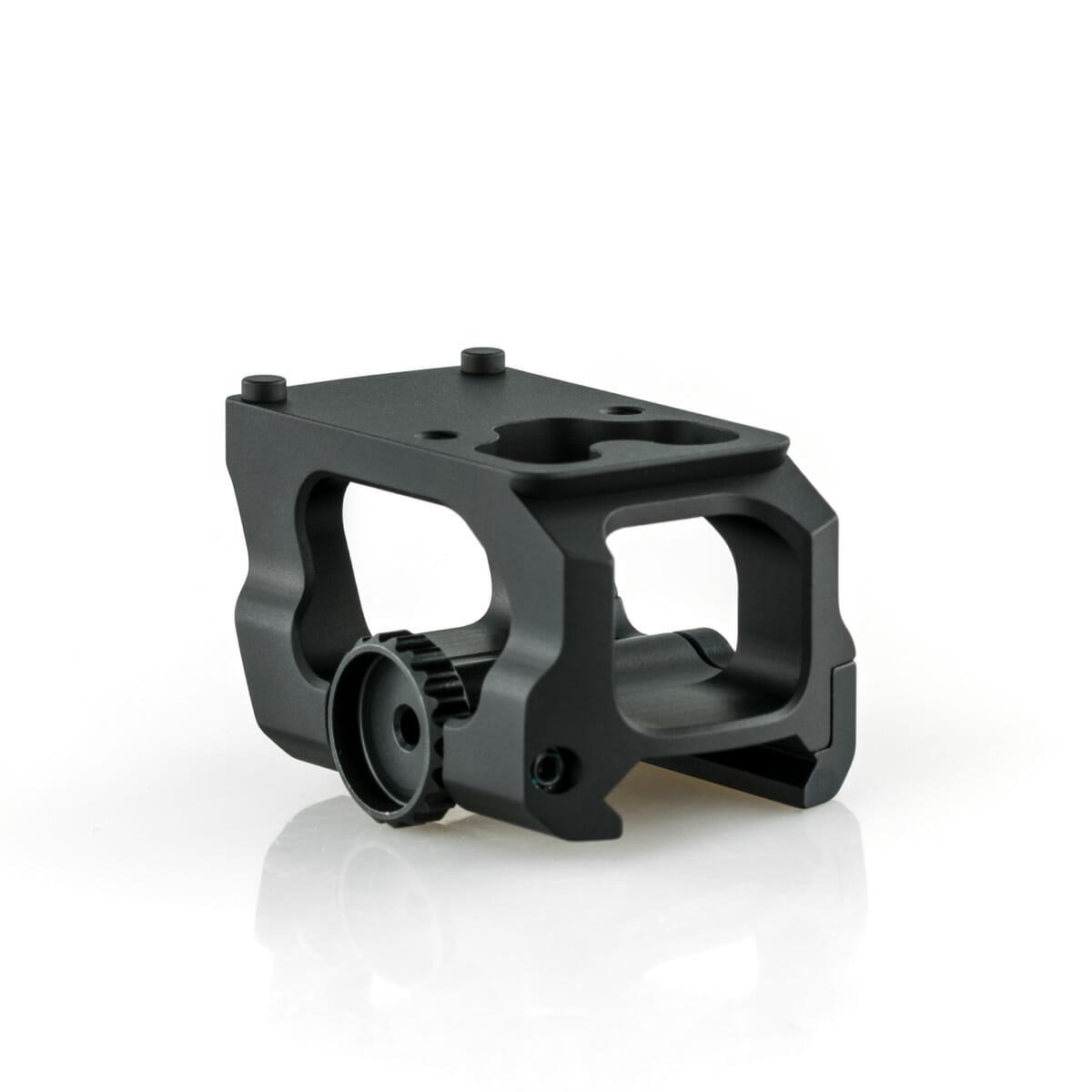

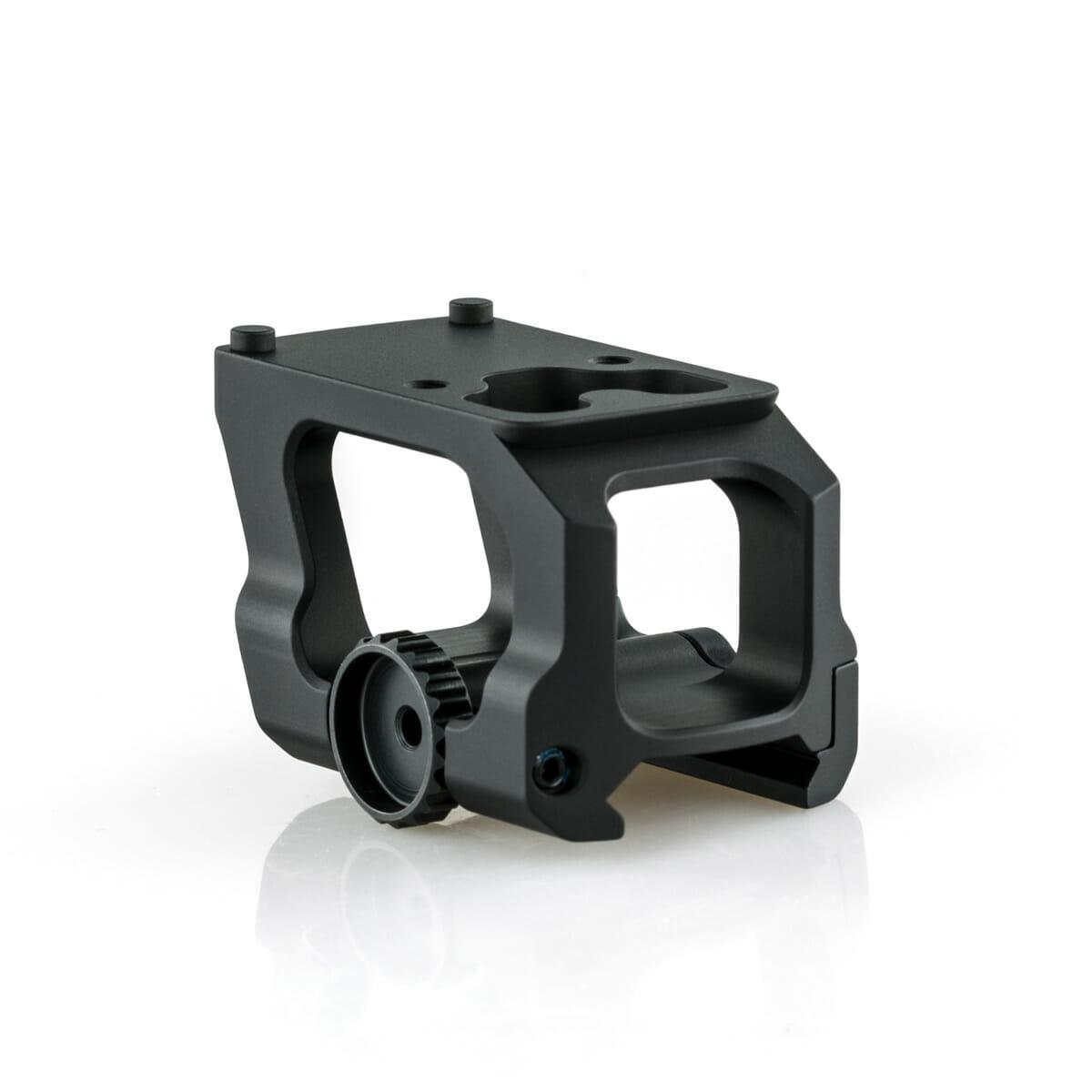

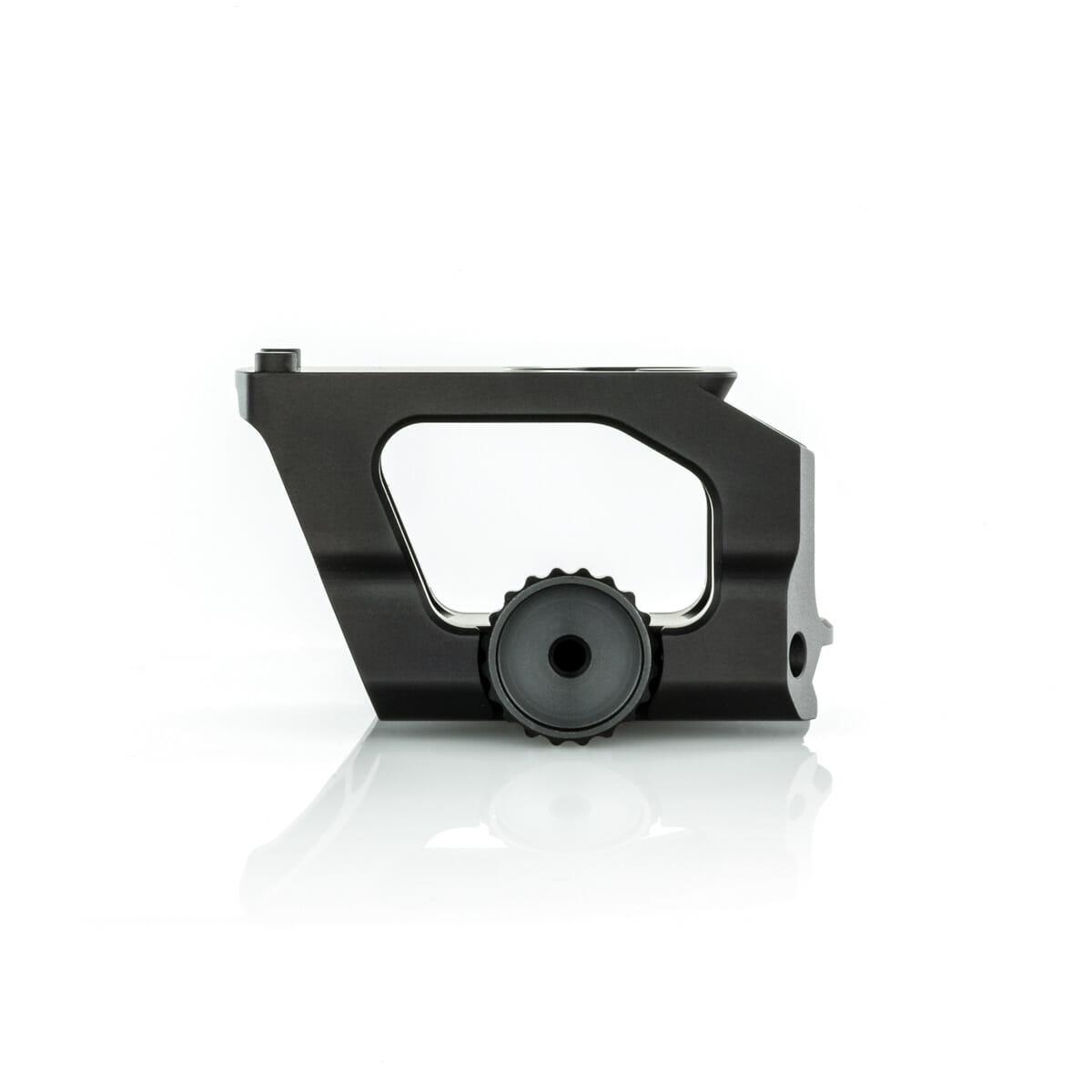

LEAP/RMR
State of the art Trijicon RMR Mount.
Designed for shooters who want the lightest, strongest, and most compact quick-detach optic mount possible.
ONE ZERO
Leap mounts hold and return to zero under any condition. Guaranteed.
MIGHTY MOUNT
The Leap is the strongest Trijicon RMR Quick-Detach mount we've ever tested.
We put a variety of QD mounts on a digital test stand, capable of exerting up to 1500lbs of force, and analyzed load versus displacement data for each. We then used everything we learned from these tests to refine our original design, culminating in the Leap; a quick-detach mount that is both the lightest and strongest on the market today.
A highly efficient clamp design guarantees precise operation and unprecedented rigidity: It features an oversize hooded thru-hole to buttress the thumbscrew's shank, which is the maximum possible diameter to fit a Picatinny channel. A pair of hardened steel precision ground pins is press fitted to the clamp and act as guides.
During it's development, the Leap mount was subjected to dozens of stress tests before a single prototype was ever made. Finite Element Analysis (FEA) helped extract every bit of performance from every gram of material. This cutting edge design process has resulted in the most efficient mount design possible.
Every Leap Mount is CNC milled from 7075-T6 billet, which has vastly superior mechanical properties to 6061-T6, and is used where ultimate strength and durability outweigh cost considerations.
SMOOTH IS FAST
The Leap has no protruding levers, bolts, or knobs to rap your knuckles, or get caught on clothing, gear, and surroundings.
ClickDrive™
Our patented ClickDrive™ quick-detach mechanism is intuitive, self adjusting, and completely recoil proof. By decoupling clamping force from vibration resistance, ClickDrive™ doesn't need massive amounts of imprecise torque, and is not dependent on unreliable friction. A low profile recessed thumbwheel deflects external impacts, while letting you take the mount off in under 3 seconds, with or without gloves.
Specifications
MATERIALS: 7075-T6 Al + 4140H Steel
FINISHES: Type III Hard Anodizing + Black Oxide
MADE IN USA: Limited Lifetime Warranty
SW0400 Absolute 36mm/1.42"
CENTER HEIGHT OVER RAIL 36mm (1.42")
WEIGHT: 42.7g (1.51oz)
SW0410 Lower-Third 40mm/1.57"
CENTER HEIGHT OVER RAIL 40mm (1.57")
WEIGHT: 45g (1.59oz)
Compatibility
OPTICS: Trijicon RM01, RM02, RM03, RM04, RM05, RM06, RM07, RM08, RM09
Standalone Mounts Package Included
• Scalarworks LEAP/RMR
• Nylok® treated sight screws
• T10 Torx driver bit
• User manual
Trijicon RMR Option is NOT included in this product
