OVERVIEW
The CompM5s™ is a high performance red dot sight developed towithstand extremely tough handling and environmentalsituations without adding much weight to the user’s equipment.Aimpoint red dot sights are designed for the “both eyes open”method which greatly enhances situational awareness and targetacquisition.Thanks to the optical design the red dot follows the movement ofthe user’s eye while remaining fixed on target, eliminating anyneed for centering.The CompM5s allows for unlimited eye relief and is compatiblewith Aimpoint 3XMag-1 and 6XMag-1 magnifiers as well as allgenerations of Night Vision Devices (NVD).The battery life for the CompM5s is over 5 years of continuoususe while at the pos. 7, more than 1 year of use at pos. 8, andmore than 10 years at NVD settings (pos. 1 to 4).
COMPLETE AND READY TO MOUNT

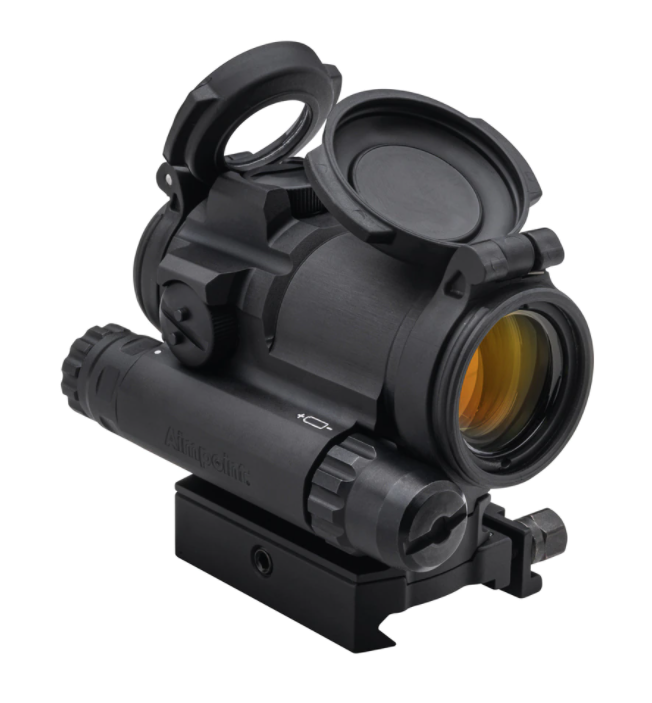

The standard configuration of the CompM5s contains the sight, anLRP mount and a spacer which gives 39 mm optical axis. Thesight is also equipped with flip-up lens covers, the front lenscover is black and the rear transparent.
CUSTOMIZE YOUR SIGHT
CompM5s sights can be customized according to your preferencesand needs. Both the included LRP mount and spacer can bechanged to meet the demands of your specific mission andequipment.
UNIQUE FEATURES
- Mountable on MIL-STD 1913 Rail system/Picatinny rail
- Advanced optical lenses with a protective front window
- Low, AAA battery compartment
- Compatible with all generations of NVD
- 2 MOA dot for close combat and long distance engagement
- Matches perfectly with Aimpoint® 3XMag-1 and 6XMag-1magnifiers
- Excellent light transmission
- Extremely robust housing design, same ruggedness as theCompM4 sights with less weight
- Operable to a depth of 45 m (150 ft)
- Mount base is keyed into to the body of the sight to absorbrecoil
- Weight 235 g (8.3 oz) standard configuration, sight only 165 g(5.8 oz)
- ACET technology allows 50 000 hours (over 5 years) ofconstant operation with one battery
- 4 NVD settings and 6 daylight settings
- Mechanical switch for speed and reliability
TECHNICAL SPECIFICATIONS
OPTICAL SPECIFICATIONS Operating principle: Reflex collimator sight with LED
Optical magnification: 1x
Aiming dot size: 2 MOA
Dot intensity: Visible against a background luminance of 0.1 to 55 000 lx
Optical signature: No optical signature is visible at 10 meter distance, front side, on appropriate settings with NVD
Dot color: Peak Wavelength: 655 ± 15 nm
NVD compatible: Yes
Optical coating: Anti-reflex, all surfaces and high transmission. NVD Compatible.
Clear aperture: 18 mm (0.71 in)
Eye relief: Unlimited
POWER SOURCE
- Battery type: 3V lithium battery, type CR1225
- Battery life - Day time use: 1.5 years (15 000h) of continuous use at pos. 6 and more than 8 years at NVD-setting
- Power intensity: 2 NVD and 8 Daylight settings of which 1 extra bright
PHYSICAL SPECIFICATIONS
- Length sight only: 47 mm (1.9 in)
- Width sight only: 30 mm (1.2 in)
- Height sight only: 30 mm (1.2 in)
- Weight sight only (incl battery): 60 g (2.1 oz)
- Housing material: High strength aluminum
- Housing finish and color: Matte black to dark gray
- Housing anodized: Yes
- Surface treatment: Anodized, semimatte
- Adjustment: Range ±1 m at 100 meters (±1 yds at 100 yds) in windage and elevation, 1 click = 17 mm at 100 meters = .6 in at 100 yds
ENVIRONMENTAL SPECIFICATIONS
- Temperature range operation: -30°C to +60°C (-22°F to +140°F)
- Temperature range storage: -51°C to +71°C (-60°F to +160°F)
- Temperature shock: Operable after a temperature shock between -30°C and +60°C (-22°F and +140°F)
- Humidity: Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
- Submersible: To a depth of 5 m (15 ft.)
- Shock: Tested with 20,000 rounds mounted on a .40 S&W caliber slide
- Vibration: Withstands vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
